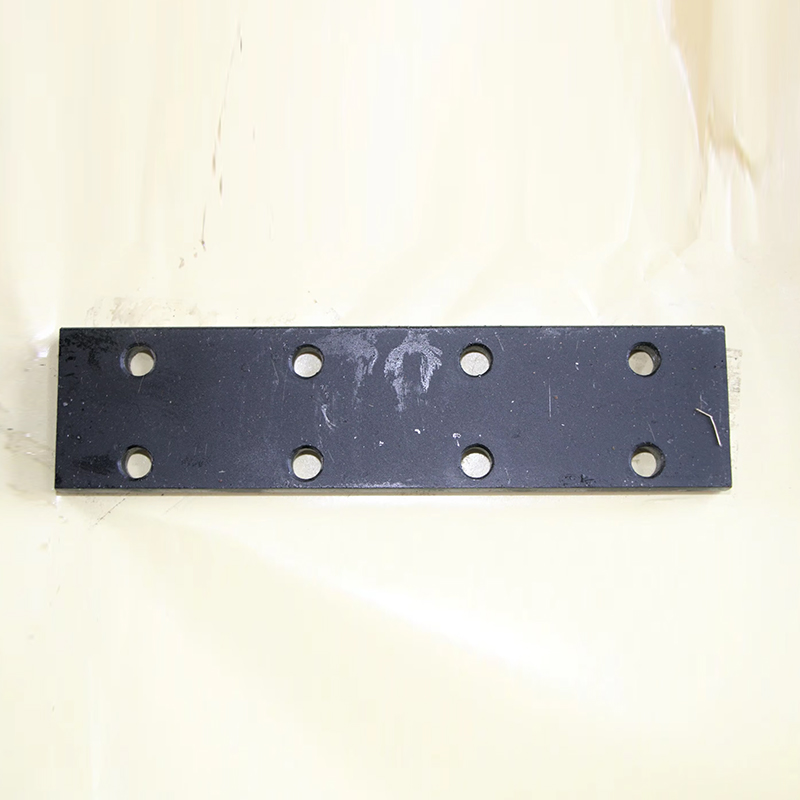

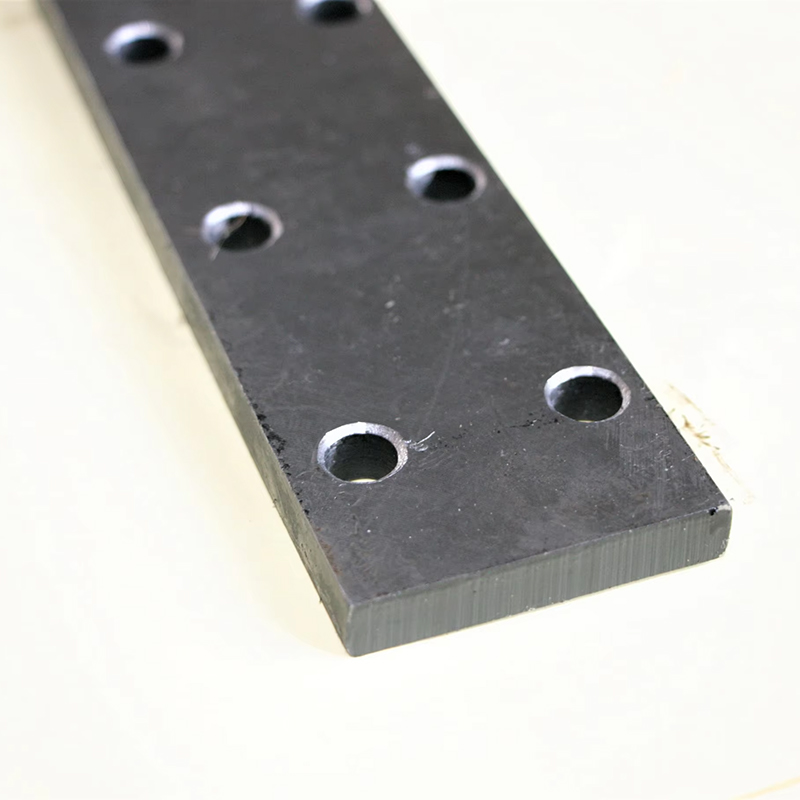

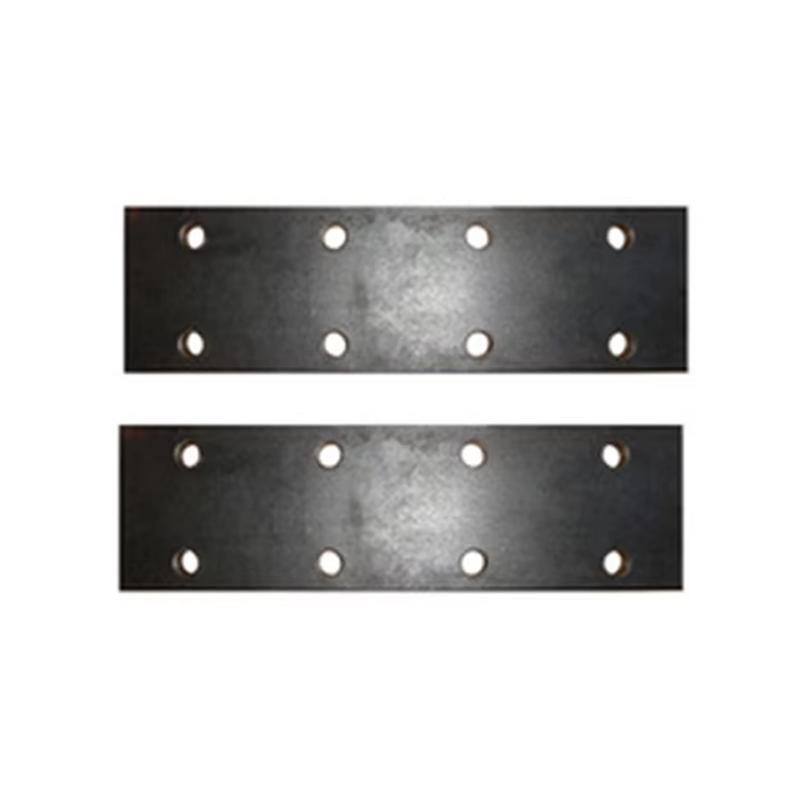

Piezas de ascensor VTSP119 Placa de conexión de riel guía de elevación de placa de pez de ascensor de alta resistencia Placa de unión de acero duradero

Modelo de carril adecuado	d	l1	l2f	l3f	b2	b3	vmin	Bolt
T45/A	9	160	65	15	50	25	8	M8x25
T50/A	9	200	75	25	50	30	8	M8x25
T70/A	13	250	105	25	70	42	10	M12x35
T70-1/B	13	250	105	25	70	42	10	M12x35
T75-3/B	13	250	105	25	70	42	10	M12x35
T78/B	13	250	105	25	70	42	10	M12x35
T82/B	13	216	80	26	80	50.8	10	M12x35
T89/B	13	305	114.3	38.1	90	57.2	13	M12x35
T90/B	13	305	114.3	38.1	90	57.2	13	M12x35
T114/B	17	305	114.3	38.1	120	70	17	M16x50
T127-1/B	17	305	114.3	38.1	130	79.4	17	M16x50
T127-2/B	17	305	114.3	38.1	130	79.4	17	M16x50
T140-1/B	21	380	152.4	31.8	140	92.1	28	M20x65
T140-2/B	21	380	152.4	31.8	140	92.1	28	M20x65
T140-3/B	21	380	152.4	31.8	140	92.1	38	M20x80
Tolerancias	-	3	±0,2	±0,2	-	±0,2	3	-
Tolerancias	-	0	±0,2	±0,2	-	±0,2	0	-

Modelo de carril adecuado	d	d1	b2	b3	l1	l2	l3
Tipo	mm	mm	mm	mm	mm	mm	mm
T75-3/B	13	26	75	43	240	90	30
T78/B	13	26	78	43	240	90	30
T82/B	13	26	82.5	50.8	216	81	27
T89/B	13	26	89	57.2	305	114.3	38.1
T90/B	13	26	90	57.2	305	114.3	38.1
T114/B	17	33	114	79.4	305	114.3	38.1
T127-1/B	17	33	127	79.4	305	114.3	38.1
T127-2/B	17	33	127	79.4	305	114.3	38.1
T140-1/B	21	40	140	92.1	380	152.4	31.8
T140-2/B	21	40	140	92.1	380	152.4	31.8
T140-3/B	21	40	140	92.1	380	152.4	31.8
Tolerancias	-	-	±1,5	±0,2	±1,5	±0,2	±0,2

Modelo de carril adecuado	h	wxx	wyy	peso	bolt
Tipo	mm	cm³	cm³	kg/pc	tamaño
T75-3/B	61	9.29	7.06	2.1	M12x35
T78/B	55	7.56	6.71	1.8	M12x35
T82/B	66.6	10.20	7.40	1.36	M12x35
T89/B	61	14.25	11.80	3.8	M12x35
T90/B	74	20.87	11.80	4.1	M12x35
T114/B	88	29.70	19.10	5.0	M16x50
T127-1/B	88	30.40	23.40	5.4	M16x50
T127-2/B	88	30.90	36.20	6.9	M16x50
T140-1/B	107	53.40	44.30	10.5	M20x65
T140-2/B	101	68.00	51.20	12.9	M20x65
T140-3/B	126	114.60	69.40	17.5	M20x65
Tolerancias	±0,1	-	-	-	-
